Housing material: SUS304, SUS316/316L
Filtration accuracy: 0.1-10000um (micron)
Working pressure: 0.4--1.0Mpa

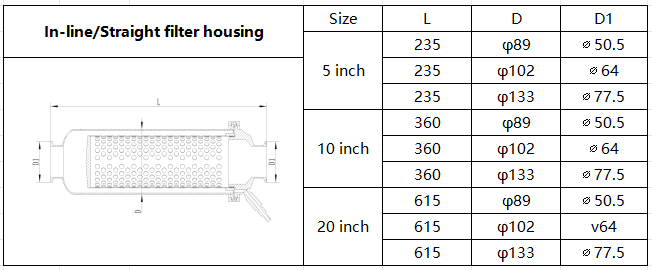

Structure: housing, filter element (custom), tri-clamp or other connector
Connections: DIN, Clamp, SMS etc.
Gaskets: EPDM (according to FDA 117.2600)
Internal surface finish: Ra < 0.8µm
External surface finish: mirror polish
Filter element: wedge wire screen, sintered mesh or other material
Filtration accuracy: 0.1-10000um (micron)
Option of filtering from outside to inside of the screen.
Description
This inline filter with tri-clamp is designed for removing small and fine solid particles from liquid filtration lines, helping to protect pumps, valves and downstream equipment. It features a straight-through flow path and a removable stainless-steel filter element screen for easy cleaning and maintenance. Custom lengths are available to suit different installation requirements.
Application
Key Applications of Inline Filters
1. Pneumatic & Hydraulic Systems: Protecting tools, valves, and robotics from contaminants that cause failure.
2. Cooling Systems: Used in injection molding, heat exchangers, and chillers to prevent clogging, for example Data Center/ Server cooling systems.
3. CIP system: suitable for CIP system and pipelines in food and pharmaceutical industries.
4. Chemical & Pharmaceutical: Ensuring high-purity liquids/gases and sterilizing, often protecting metering pumps.
5. Gas & Fuel Lines: Filtering contaminants in vacuum pumps, laboratory reagents, or fuel systems.
6. Residential & Water Treatment
7. Refrigerators & Ice Makers: Installed externally to improve water taste and protect ice-maker mechanisms.
8. Under-Sink Systems: Providing point-of-use (POU) filtration for drinking and cooking water, removing chlorine and sediment.
9. RV & Camper Systems: Portable, in-line solutions for safe, clean drinking water while traveling.
10. Coffee Machines & Water Coolers: Preventing scale buildup and improving taste.
Advantages in Applications
1. Protection: Extends equipment lifespan by preventing premature wear and damage.
2. Efficiency: Maintains system uptime with low-pressure drops, enabling continuous flow.
3. Compactness: Easy to install directly into existing lines, including in tight spaces.
4. Maintenance: Simplifies upkeep, with many models featuring easy flushing or replacement.
1. The internal structure has nobreeding places for bacteria.
Our design can meet food grade andpharmaceutical grade requirements.
At the sametime, there is no welding bead where the filtermedium comes into contact to avoid oxidation ofthe residue and excessive bacterial flora.
2. Joint seal design
The joint sealing design ensures the sealingeffect.
The rubber surface groove design makesthe rubber ring more stable and not easy to bedamaged, extending the service life.
